Fitting Description
P54X/P74X Wire sticker
Adapt to diverse needs:
Can handle folding labels for wires and cables of different sizes and hardness Can also be extended to other similar production scenarios, such as pipeline, pipeline, etc.
P54X/P74X Wire sticker
Integrated solution
Provide integrated solutions that can be seamlessly integrated with other production equipment and information systems, obtain data from the production management system or ERP system, realize automated printing of labels and traceability management, and improve the level of informatization of the production process
P54X/P74X Wire sticker
Easy to operate and maintain
The equipment operation interface is friendly, and operators can quickly get started. At the same time, maintenance is relatively simple, which can reduce production downtime caused by equipment failure.
P54X/P74X Wire sticker
Customization capability
Supports non-standard customization, and can be customized according to customer-specific requirements, including specific object styles, label styles, and equipment configurations.
Specifications
Model: P54X/P74X

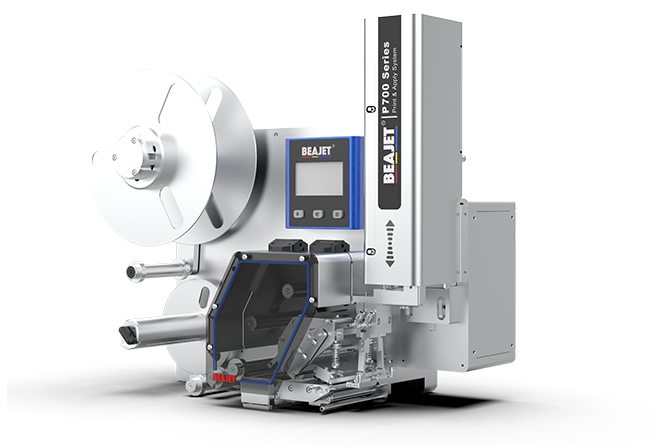

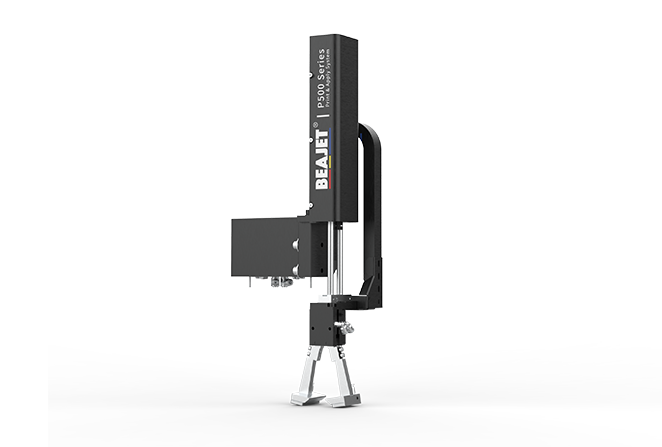

Interfacing host: P500 series, P700 series
Interfacing system: ERP, MES, EAP, and metal inspection and weighing, etc.
Labeling speed: 20 sheets/min (optional high-speed cylinder)
Labeling accuracy: ±1mm
Labeling surface: top
Printing accuracy: 203/300/600DPI
Label effective width: (maximum) 108/168/216mm
Label length range: The range can be determined according to actual conditions
Applicable label materials: coated paper, PE film, thermal paper
Product size: 727*447*562/712"378*602mm
Weight: 60/40KG
