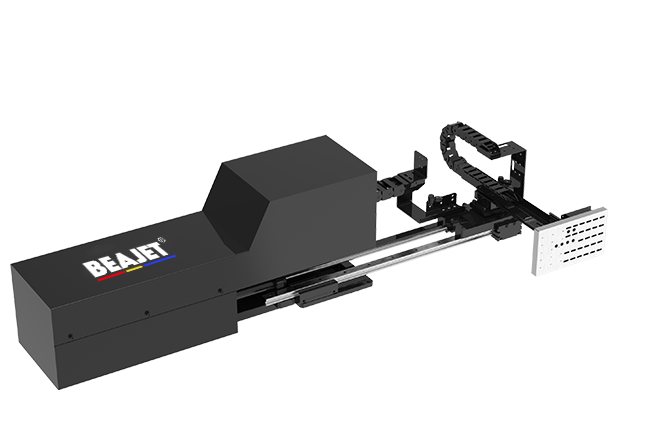

| Double-Sided Applicator P54S、P74S： It can realize the free combination of double-sided labeling and single-sided labeling of a product Especially suitable for palletizing box labeling and palletizing pallet labeling It is an upgrade of the swing arm labeling machine. Compared with the swing arm labeling machine, it has higher precision. More adaptable. |

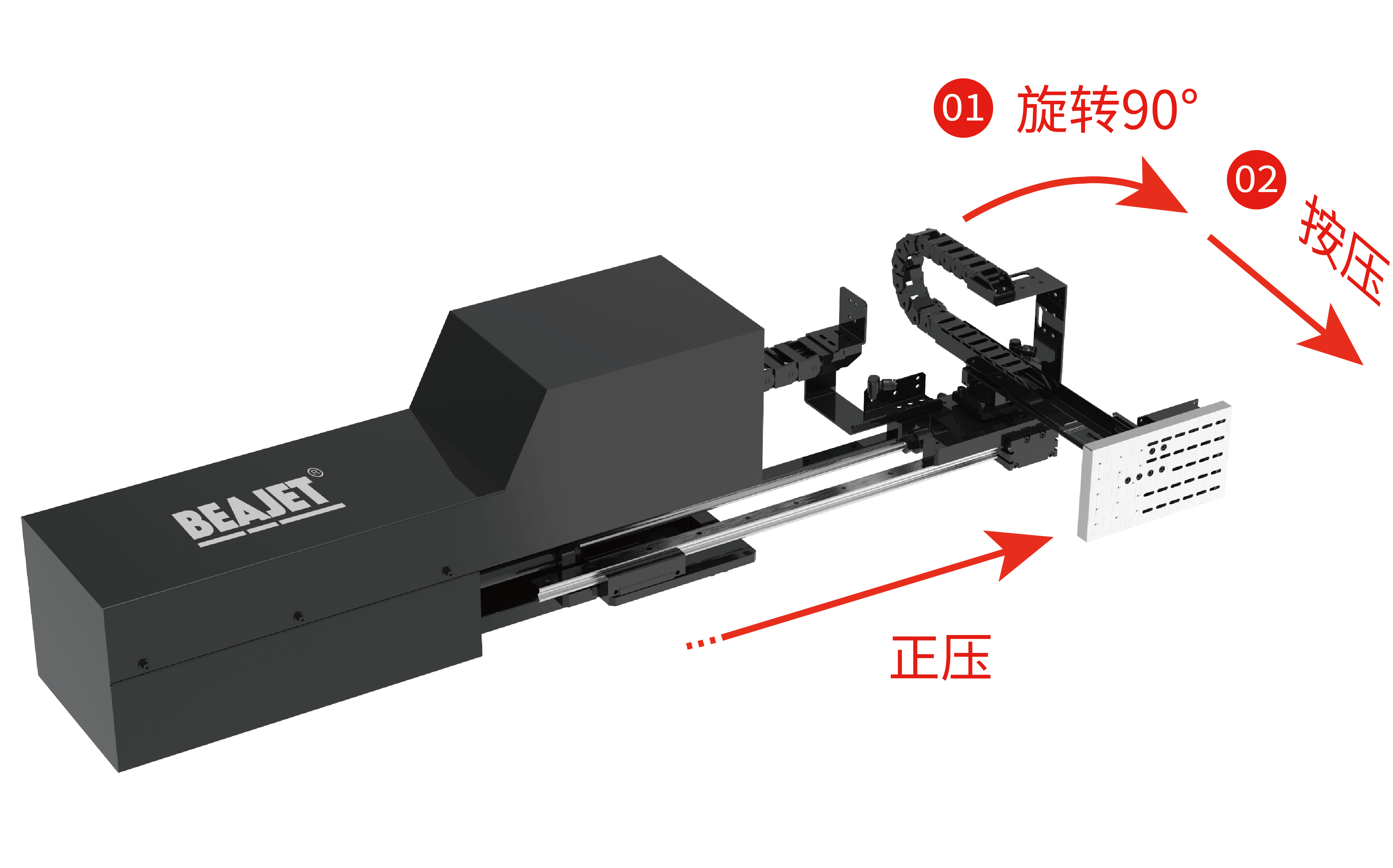

Working state： Through the external sensor, I/O point input signal, control device printing label. Double linear cylinder plus swing arm cylinder combination, more project requirements, can be free in touch screen Combine labeling method and labeling time. | |

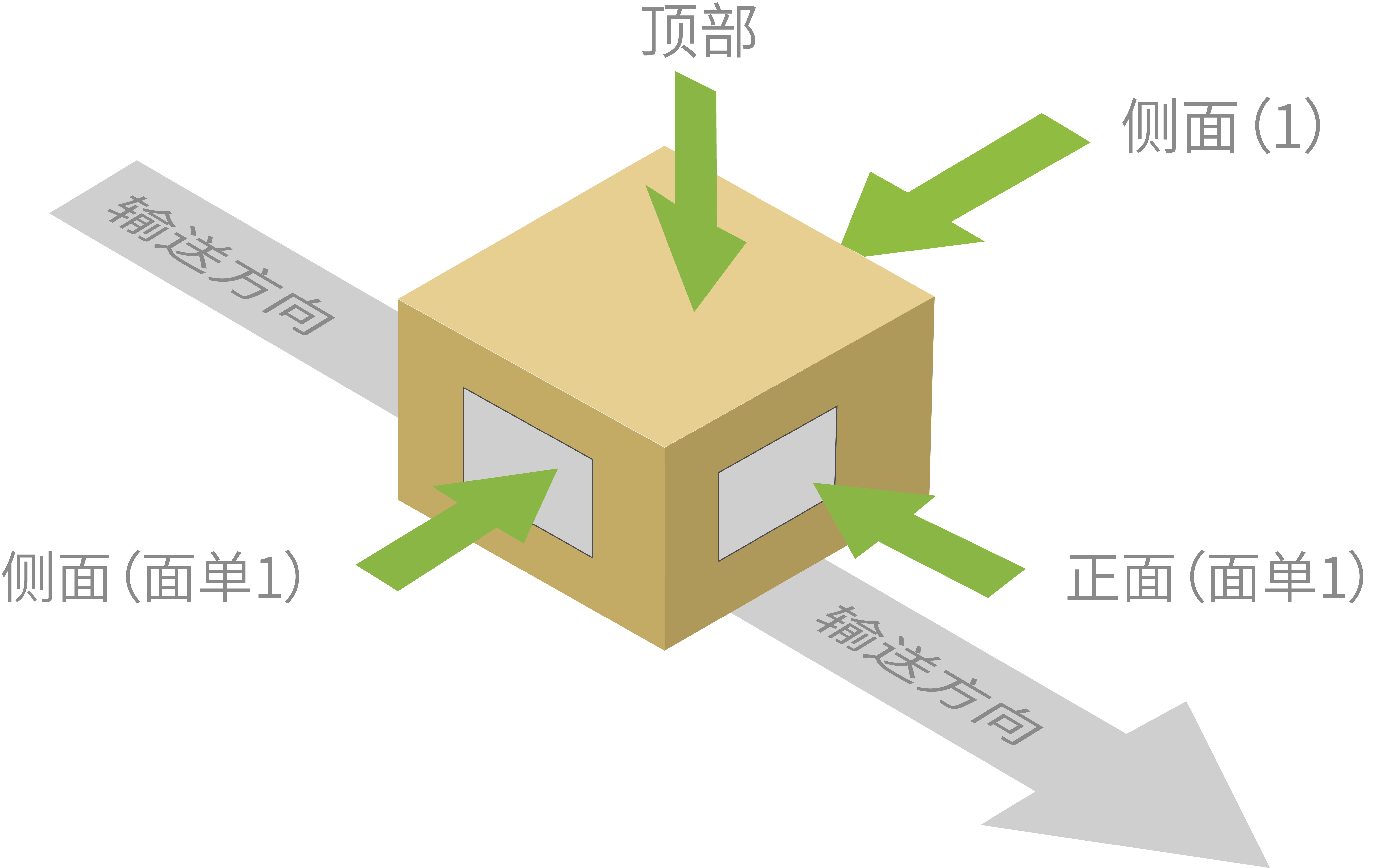

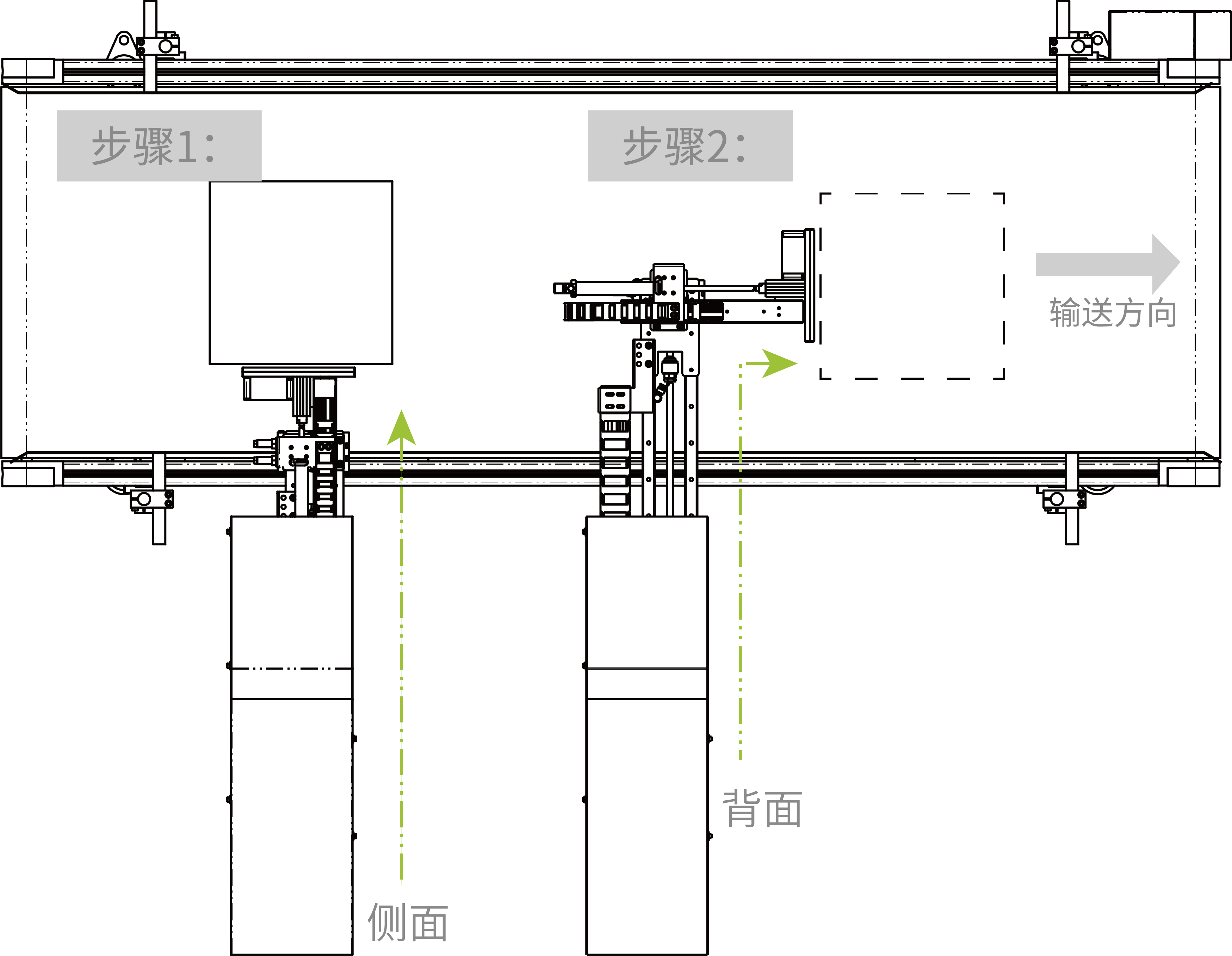

Corresponding labeling position of assembly line edge:
| The equipment can be veneered:
|

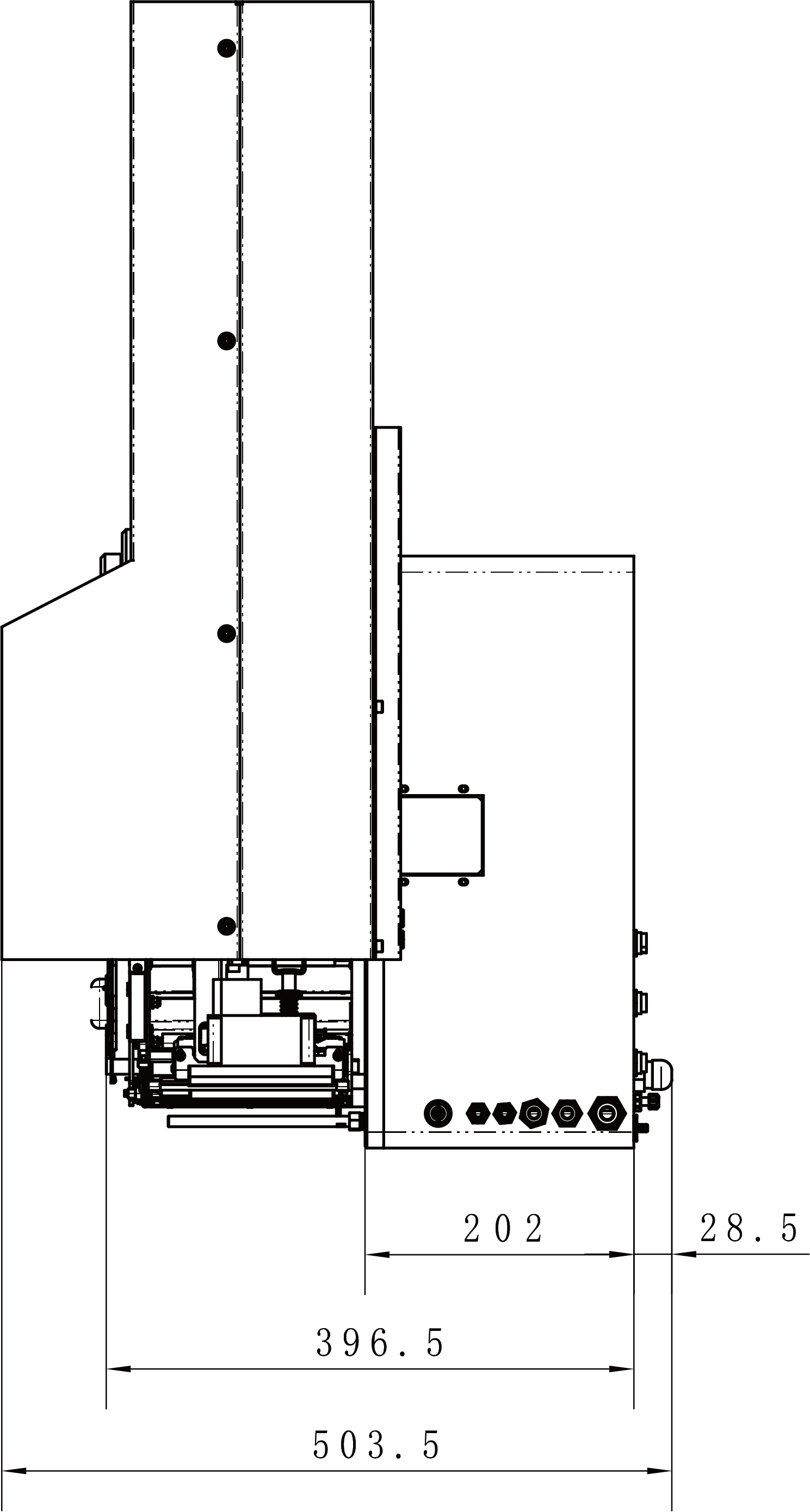

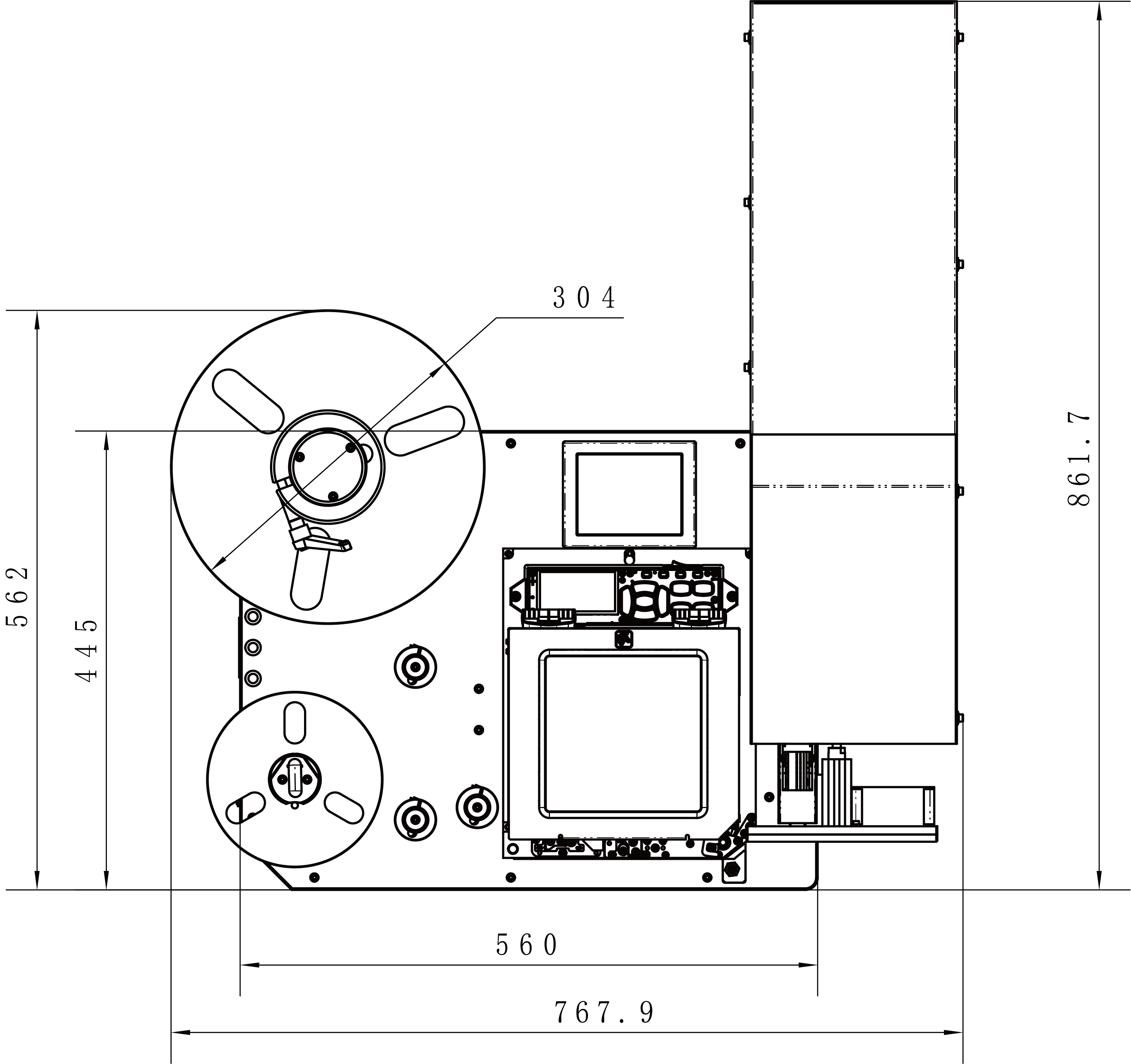

Front size: Side size:

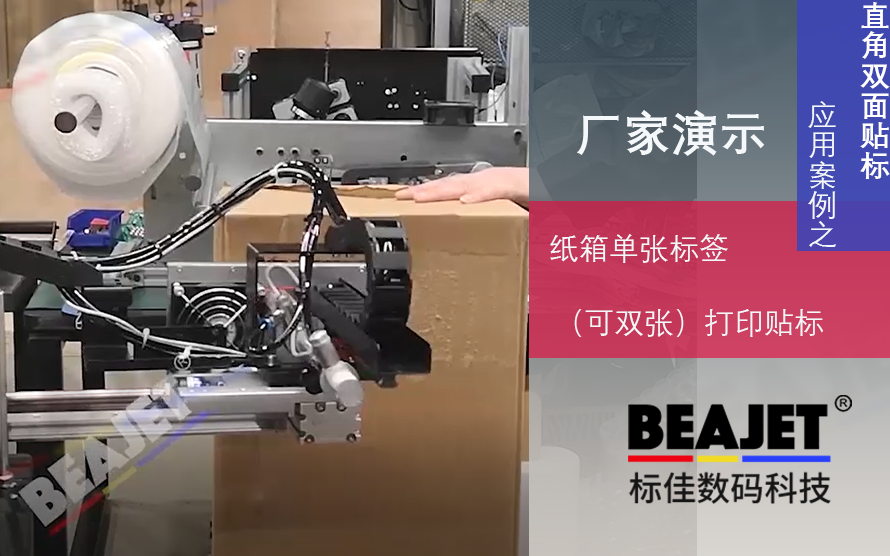

| Installation and display: |
| Double-Sided Applicator P54S、P74S： It can realize the free combination of double-sided labeling and single-sided labeling of a product Especially suitable for palletizing box labeling and palletizing pallet labeling It is an upgrade of the swing arm labeling machine. Compared with the swing arm labeling machine, it has higher precision. More adaptable. |
Working state： Through the external sensor, I/O point input signal, control device printing label. Double linear cylinder plus swing arm cylinder combination, more project requirements, can be free in touch screen Combine labeling method and labeling time. | |
Corresponding labeling position of assembly line edge:
| The equipment can be veneered:
|
Front size: Side size:
| Installation and display: |
| Labeling method： | Double-Sided Applicator |
| Labeling arm model： | P54S、P74S |
| Labeling speed（or high-speed cylinders）： | 10 sheets/min |
| Labeling width： | Z400mm，Y200mm |
| Labeling accuracy： | ±1mm |
| Size（fuselage+labeling arm）： | 767.9*503.5*861.7mm |
| Weight： | 60KG |
Accuracy: ±0.5 mm
Accuracy: ±1 mm
Accuracy: ±2mm
Accuracy: ±1mm
Accuracy: ±1 mm
Accuracy: ±0.7mm
Accuracy: ±0.5mm
Accuracy: ±1mm
