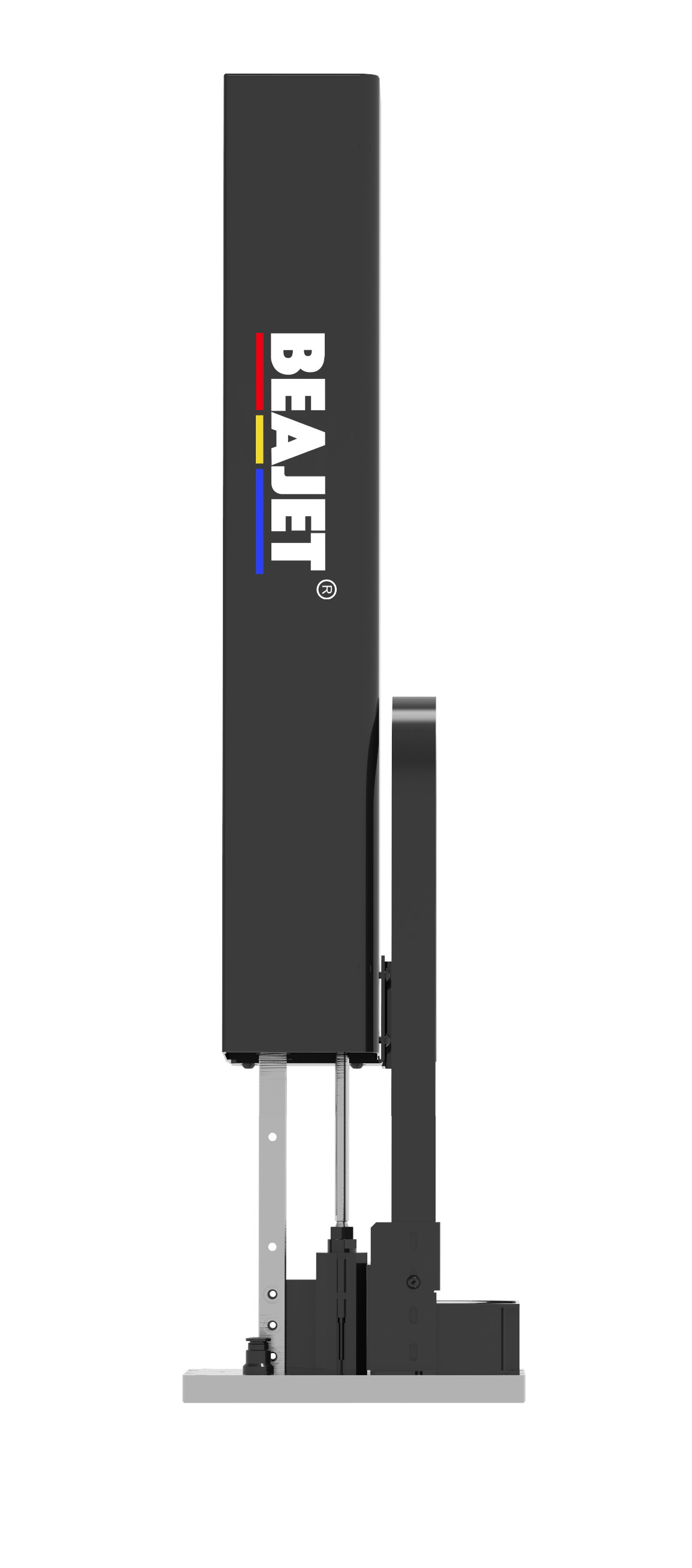

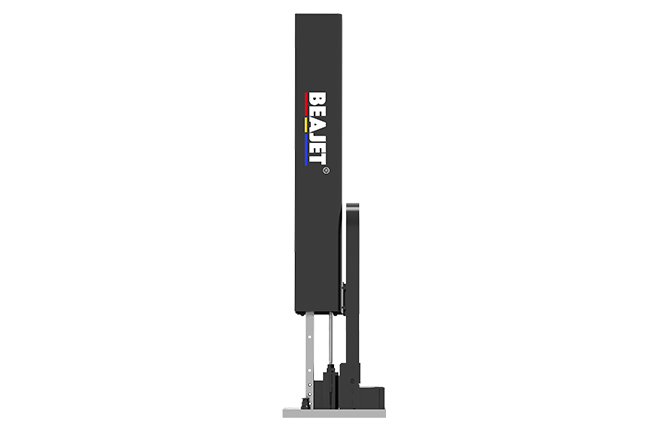

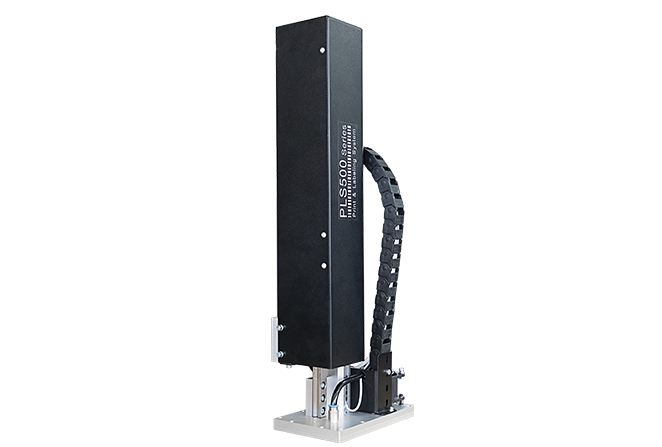

P540/P740 Pneumatic Tamp Label Applicator
| Pneumatic pressing stick：P540、P740 Automatic printing and labeling, no duty, automatic operation of the machine, farewell to the tedious printer printing labels, In the manual labeling,Improve work efficiency and reduce production cost. |
Working Status: Through the external sensor, I/O point input signal, control device printing and labeling. When the equipment is labeled, Through pressure sensor or photoelectric switch, the front end of the standard palm can automatically sense the distance from the object to be attached to achieve self-adaptation Labeling stroke function. Can achieve the ability to paste different distance products at the same time. | |

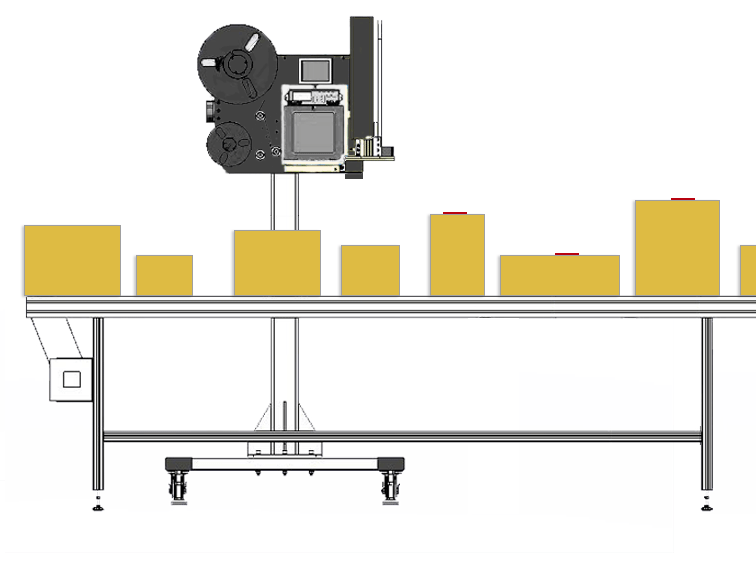

| Adaptive items of different heights: The label can be accurately pressed onto flat and uneven product surfaces

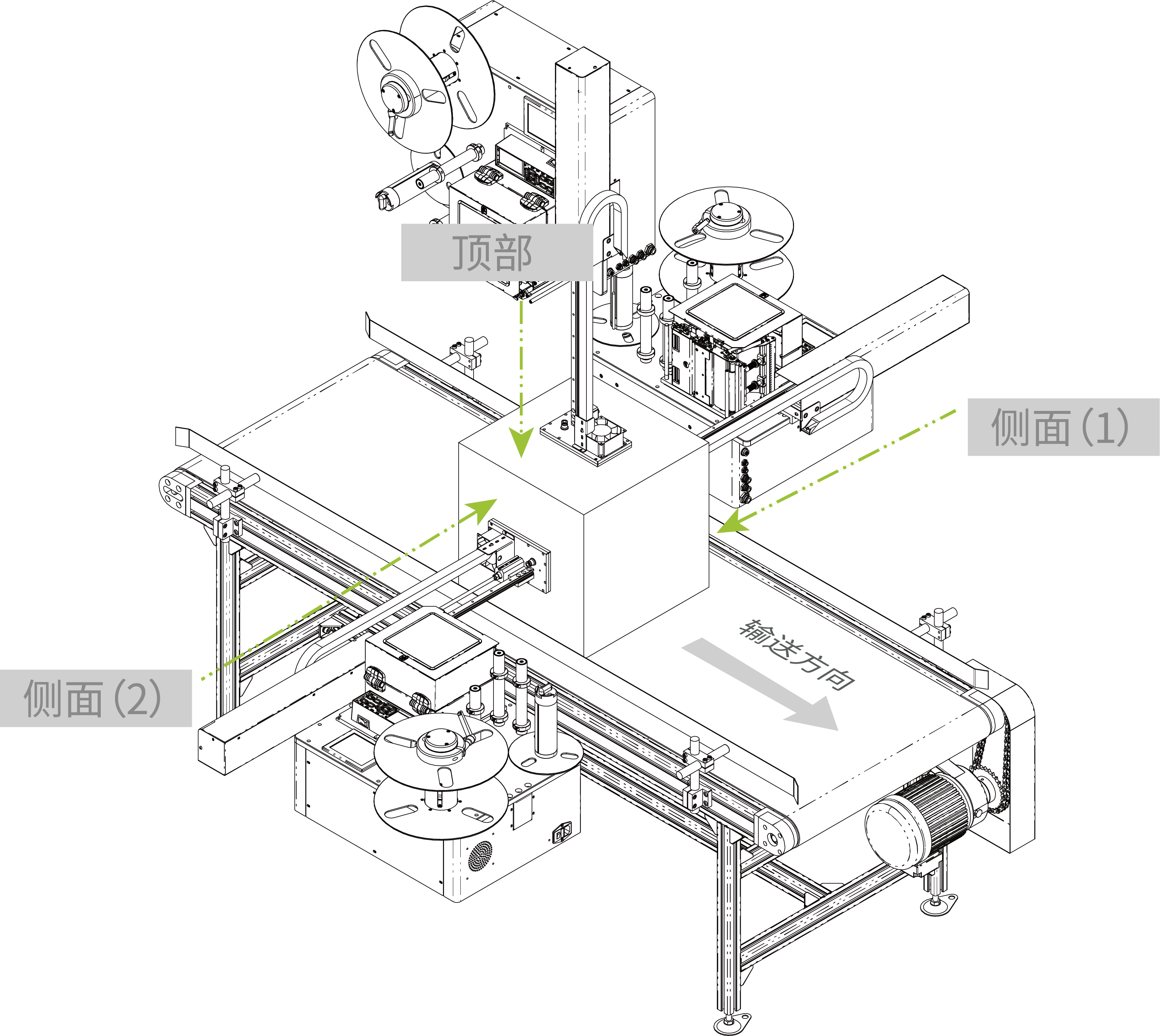

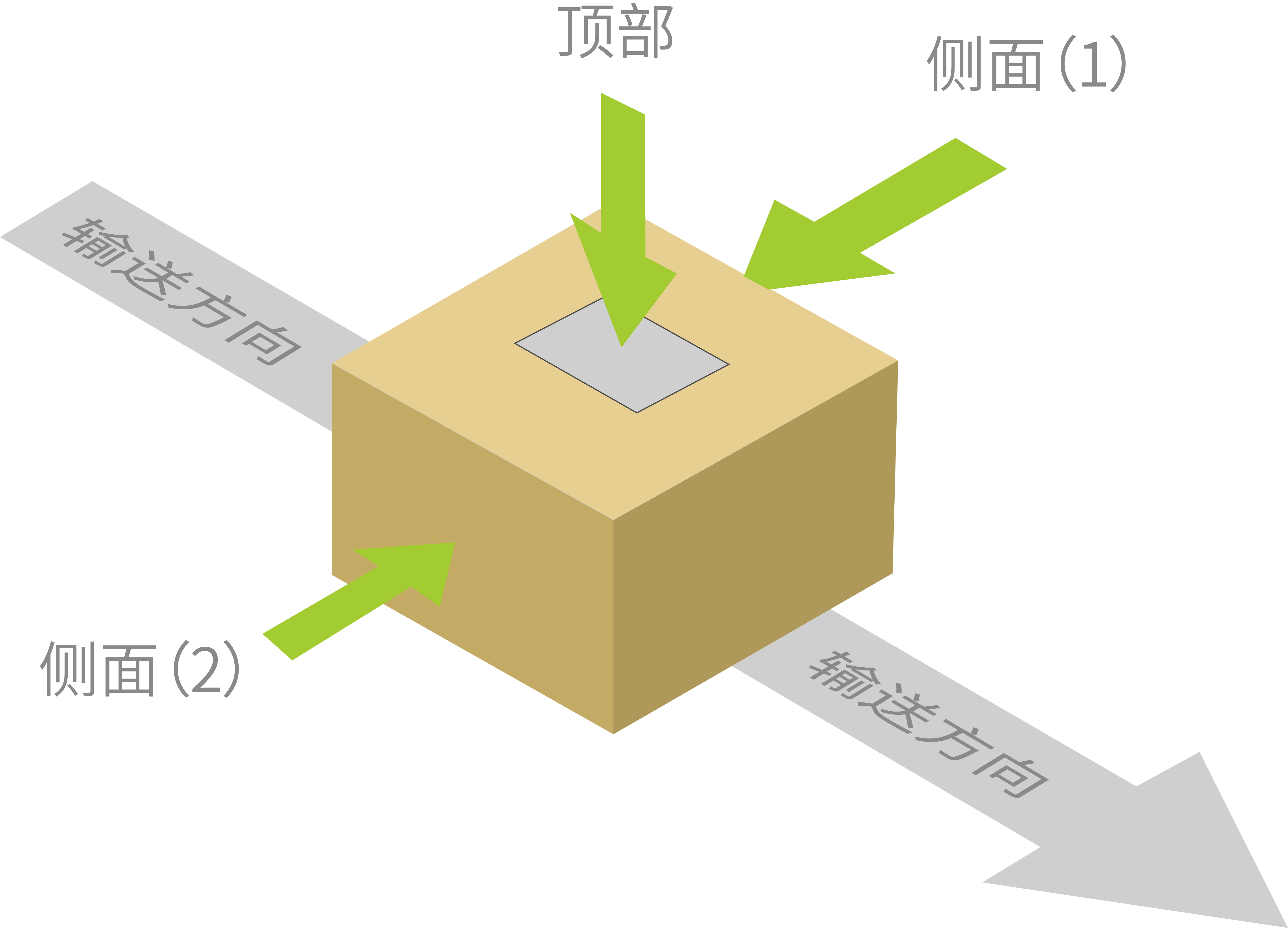

The equipment can be veneer:
|

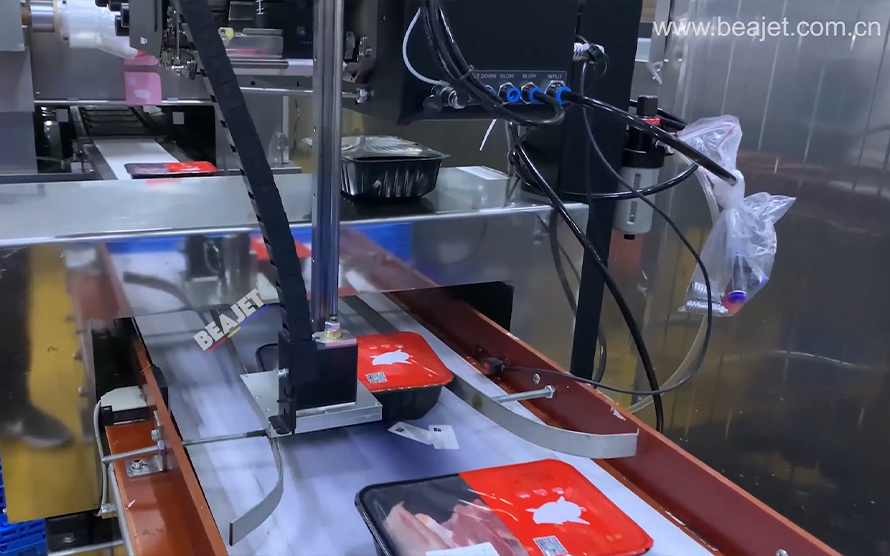

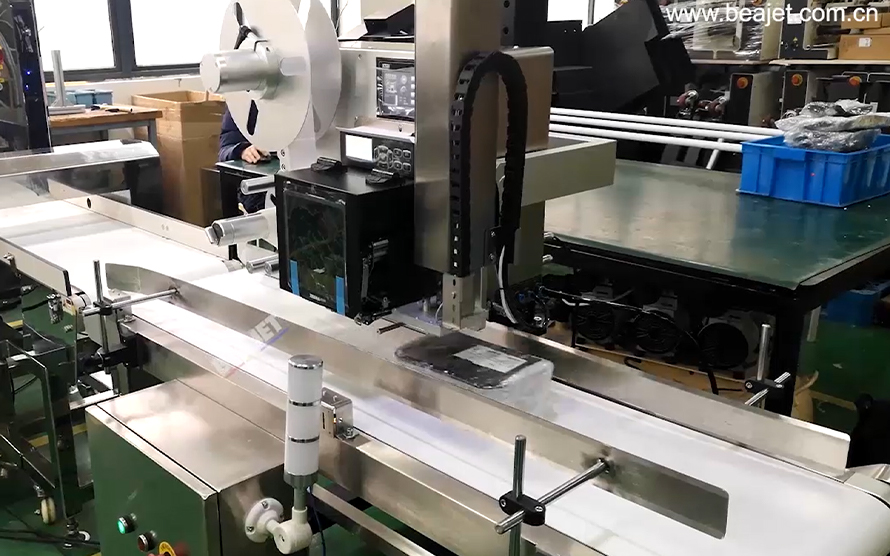

The assembly line edge corresponds to the labeling position Pneumatic pressing mechanism of linear guide rail, smooth contact with articles, accurate positioning without deviation, labeling accuracy±1mm The label plate is equipped with a contact sensor to ensure that the articles are not squeezed, perfect protection. | |
| Pneumatic pressing stick：P540、P740 Automatic printing and labeling, no duty, automatic operation of the machine, farewell to the tedious printer printing labels, In the manual labeling,Improve work efficiency and reduce production cost. |
Working Status: Through the external sensor, I/O point input signal, control device printing and labeling. When the equipment is labeled, Through pressure sensor or photoelectric switch, the front end of the standard palm can automatically sense the distance from the object to be attached to achieve self-adaptation Labeling stroke function. Can achieve the ability to paste different distance products at the same time. | |
| Adaptive items of different heights: The label can be accurately pressed onto flat and uneven product surfaces
The equipment can be veneer:
|
The assembly line edge corresponds to the labeling position Pneumatic pressing mechanism of linear guide rail, smooth contact with articles, accurate positioning without deviation, labeling accuracy±1mm The label plate is equipped with a contact sensor to ensure that the articles are not squeezed, perfect protection. | |
| Labeling method： | Pneumatic pressing |

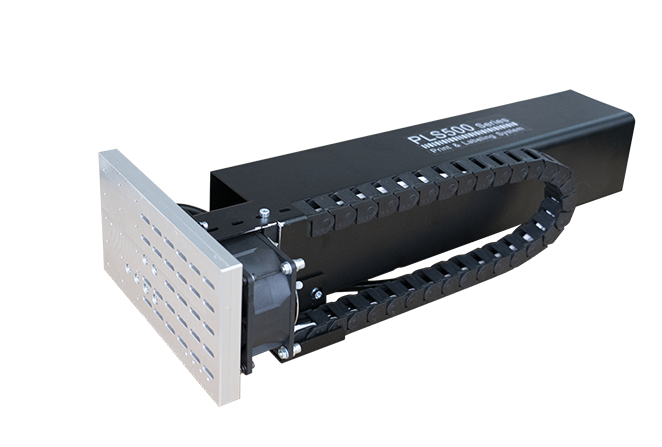

| Labeling arm model： | P540、P740 |
| Labeling speed（or high-speed cylinders）： | 35sheets/min |
| Labeling width： | 200mm、320mm、400mm、600mm |
| Labeling accuracy： | ±0.5mm |
| Size（fuselage+labeling arm）： | 740.5*443.5*667.5mm（320mm labeling arm） |
| Weight： | 55KG |
