Fitting Description

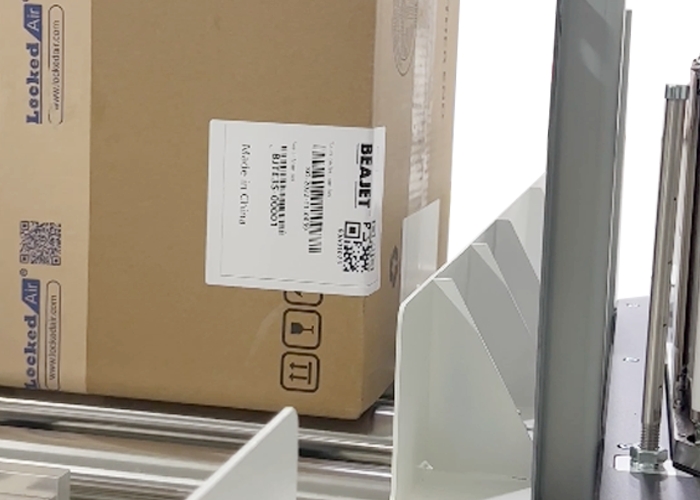

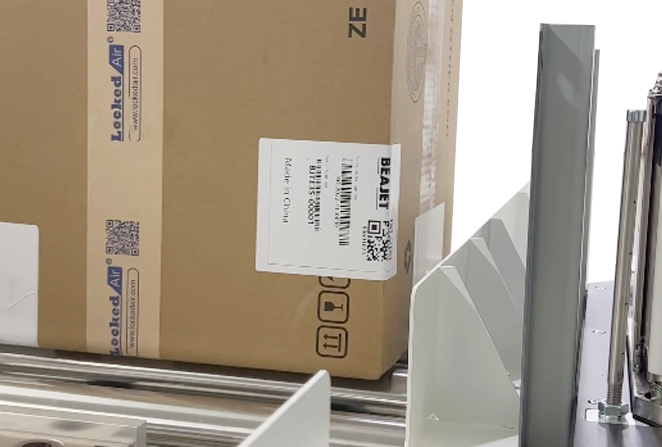

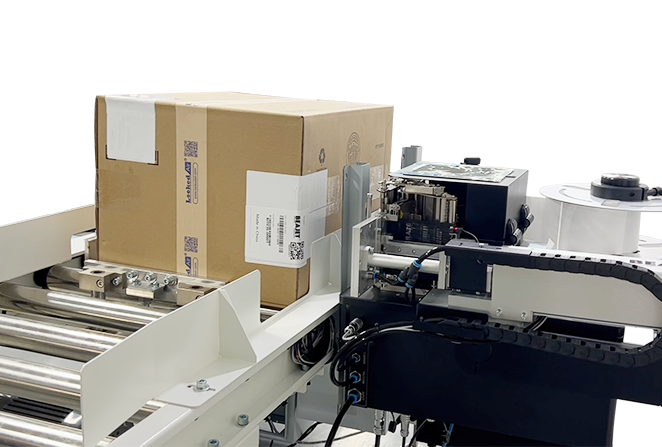

Precision Corner Printing and Labeling Technology
Precision Corner Printing and Labeling Technology
Utilizes advanced corner labeling technology to ensure precise printing and labeling at the corners of paper boxes, ensuring clarity and accuracy of the labels.

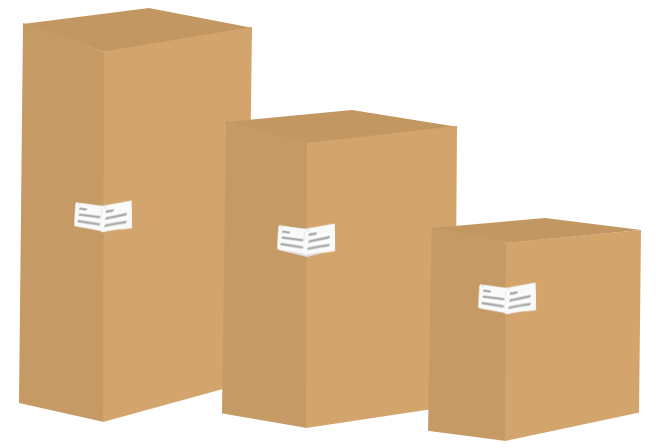

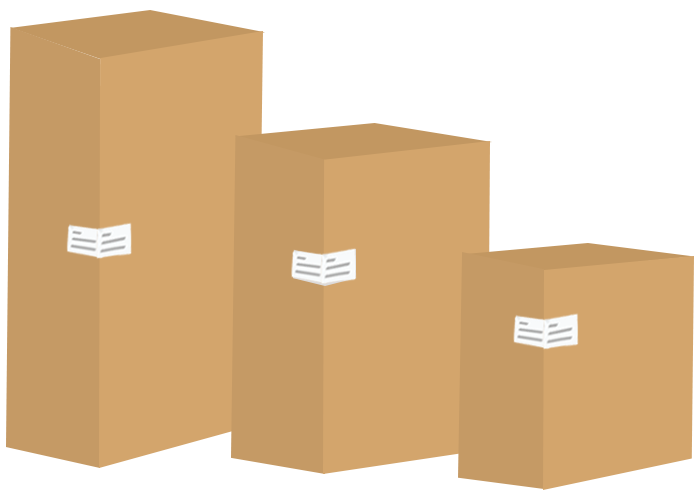

Adaptive to Cardboard Box Sizes
Adaptive to Cardboard Box Sizes
Can flexibly adapt to label different specifications and sizes of cardboard boxes.

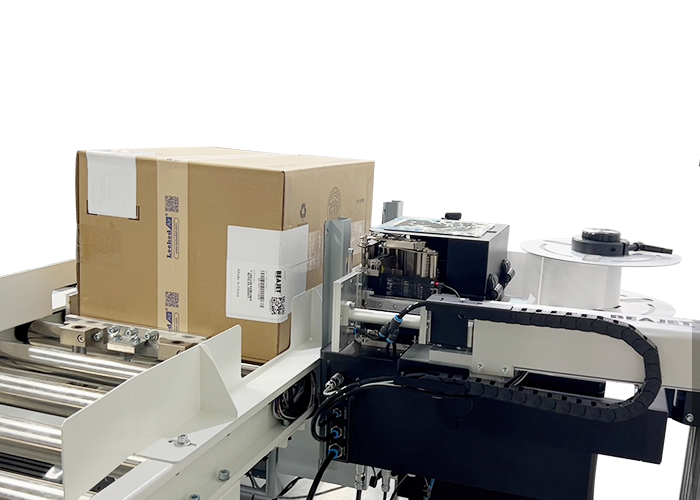

Intelligent Linkage of Production Lines
Intelligent Linkage of Production Lines
Automatically initiates the labeling process upon detecting new boxes on the production line, eliminating the need for manual intervention.

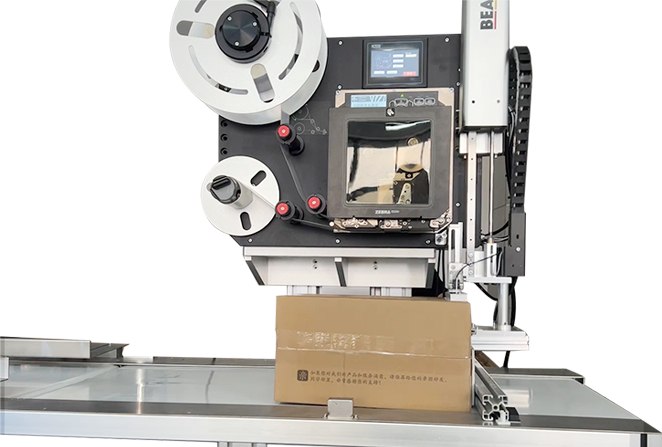

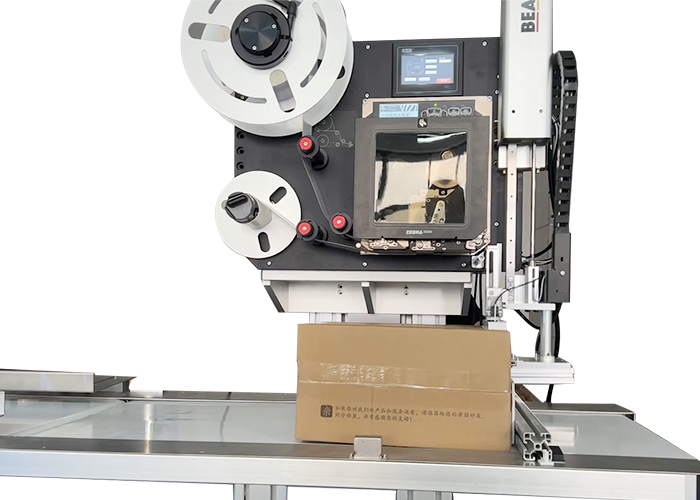

Durable and Stable Structural Design
Durable and Stable Structural Design
Operates continuously 24/7 without downtime, featuring a robust design that maintains efficient operation even in high-intensity production environments.
Specifications
Labeling Method: Right-angle corner labeling
Labeling Arm Model: P54Z/P74Z
Labeling Speed (optional high-speed cylinder): 15 labels per minute
Labeling Stroke: Z320, X150mm
Labeling Accuracy: ±1mm
Product Size (machine + labeling arm): 699*447*698/712*378*696mm
Product Weight: 55/40KG
Labeling Direction: Left exit or right exit
Corresponding Labeling Position on the Production Line: Upper right angle or side right angle in the direction of conveyance
Applicable Labeling Surfaces: Various surfaces composed of right angles


Fitting's video

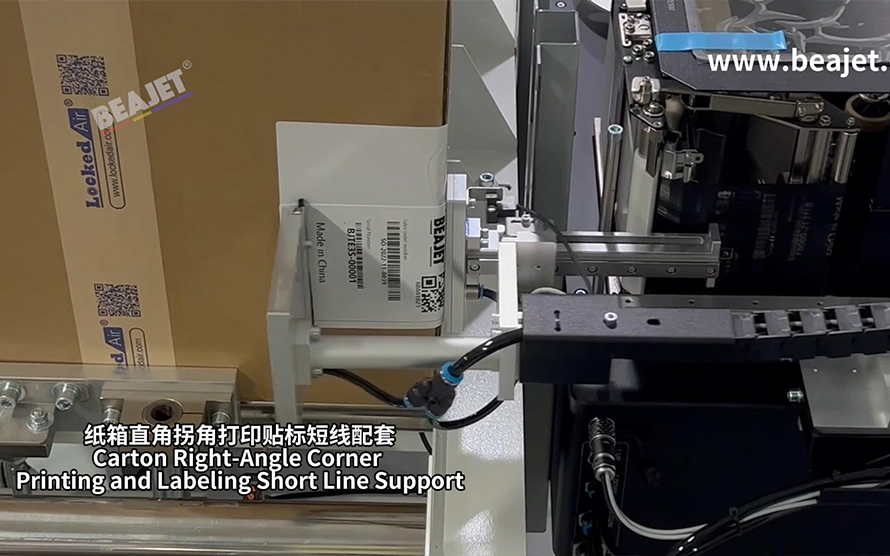

Carton Right-Angle Corner Printing and Labeling Short Line Support
See the Application Case page for more information
